VEZETÉK NÉLKÜLI
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4-6 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1 GHz Quad-Core CPU
Ethernet Ports 2× Gigabit Ports
*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
BIZTONSÁG
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
Network Security SPI Firewall
Access Control
HomeCare™ Antivirus
\Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeCare™ QoS
QoS by Device
QoS by Application
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
PHYSICAL
Dimensions (W×D×H) 4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm)

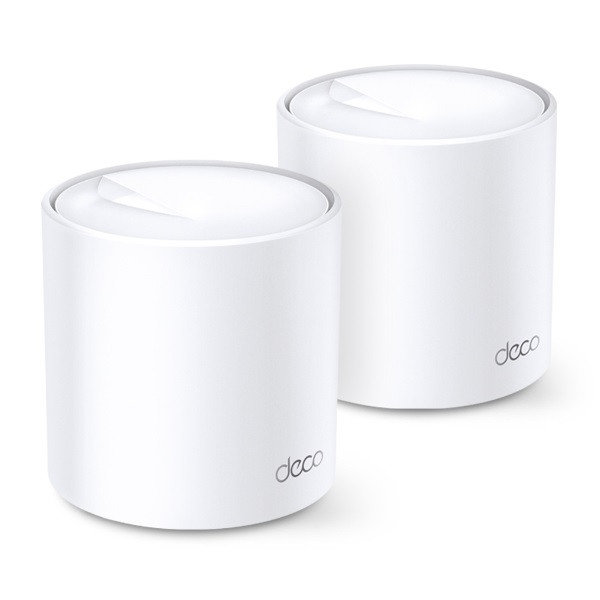

Package Contents Deco X20 (3-pack)
3 Deco X20 Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide
Deco X20 (2-pack)
2 Deco X20 Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide
Deco X20 (1-pack)
1 Deco X20 Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide
EGYÉB JELLEMZŐK
Rendszerkövetelmény Android 4.4 or later
iOS 9.0 or later
Tanúsítványok CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI
Környezet Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm (2.4 GHz)
<30 dBm (5 GHz)
