| Capacity |
| NAND Flash |
| Interface |
| Sustained Read Performance |
| Sustained Write Performance |
| IOPs (4K Random Write) |
| ECC Support |
| Shock |
| Vibration |
| Low Power Consumption (Active/Idle) |
| MTBF |
| Humidity |
| Standard Operating Temperature |
| Storage Temperature |
| Dimensions |
| Certificate |
| Warranty |

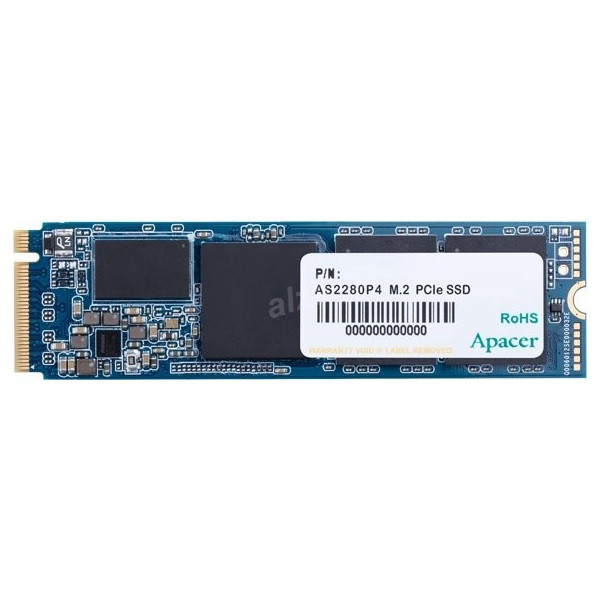

| AS2280P4 M.2 PCIe Gen 3 x4 SSD |
|---|
| 240GB / 256GB / 480GB / 512GB / 1TB |
| 3D TLC |
| PCIe Gen3 x4 |
| 240GB:Up to 1,800MB/s 256GB:Up to 1,800MB/s 480GB:Up to 2,100MB/s 512GB:Up to 2,100MB/s 1TB:Up to 3,000MB/s |
| 240GB:Up to 1,100MB/s 256GB:Up to 1,100MB/s 480GB:Up to 1,500MB/s 512GB:Up to 1,500MB/s 1TB:Up to 2,000MB/s *The performance may vary due to host hardware, software , usage and storage capacity. |
| Up to 360,000 IOPS |
| Up to 72bit/1KB |
| 1500G/0.5msec |
| 7~800Hz, 3.08Grms |
| 275/80mA |
| 1,500,000 hours |
| 5%~95% |
| 0°C ~ +70°C |
| -40 ~ +85°C |
| (L)80 x (W)22 x (H)2.25mm |
| KCC, CE, FCC, VCCI, RCM, BSMI |
| 3 Years |
