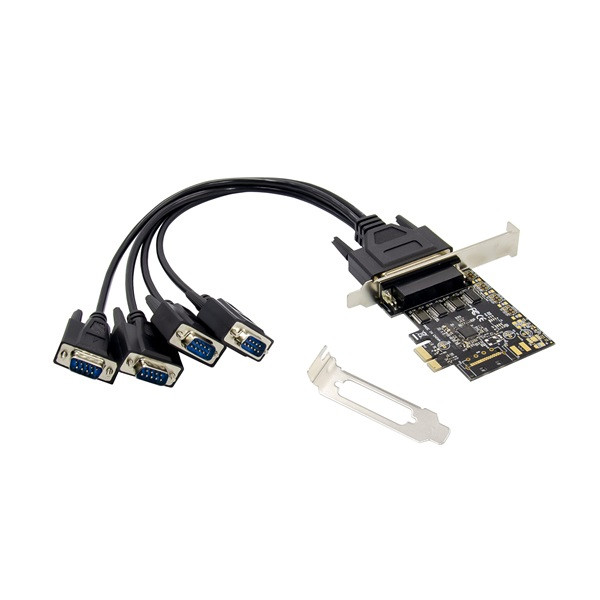

EMRICK12B 4-Port DB9 RS232 Serial PCIe Card
Model Number
EMRICK12B
SKU
110014507101
- Expands your system's connectivity with the addition of 4 RS232 (DB9) serial ports
- Compliant with PCI Express 2.0 Gen 1
- On chip 256-byte depth FIFO in transmit, receive path of each port
- Supports Slow IrDA mode (up to 115200bps) on all serial ports
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 847330 |
| Customs product code (TARIC) | 8473302000 |
| Others | |
| Approval and Compliance | CE, RoHS |
| Operating humidity | 5% RH ~ 95% RH |
| Operating temperature | -10°C ~ 55°C |
| Compatible operating systems | Windows XP Windows 7 Windows 8 Windows 8.1 Windows 10 Windows 11 Linux kernel 2.6 and higher |
| Storage temperature | -40°C ~ 70°C |
| Package Contents | EMRICK12B Low profile bracket Driver CD Multilingual quick installation guide |
| Physical Specifications | |
| Dimensions (W x D x H) | 85 x 69 x 3 mm |
| Product weight (kg) | 0.25 |
| General | |
| Color | Black |
| EAN | 4015867236628 |
| Model Number | EMRICK12B |
| System specifications | |
| Connector | PCIe x1 |
| PCI version | PCIe 2.0 |
| Port Configuration | RS-232 x 4 |
The 4-Port DB9 RS232 Serial PCIe Card features four serial ports, providing an easy expansion for additional devices. The serial ports support the RS-232 protocol with a transmission speed of up to 115200bps and also support hardware and software flow control.
