ALTHEA15W 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS, PD 3.0
Model Number
ALTHEA15W
SKU
120550203101
- High-Power GaN Technology: This charger utilizes advanced Gallium Nitride (GaN) technology, providing up to 20W of total power for faster and more efficient charging.
- Versatile Port Selection: Equipped with 2 ports including 1 USB-C ports (with PD 3.0) and 1 USB-A ports (with QC 3.0), allowing simultaneous charging for multiple devices with varying power requirements.
- Wide Compatibility: Supports a range of output options from 3.3V to 12.0V across its ports, ensuring compatibility with devices from smartphones to laptops.
- Enhanced Safety Features: Built-in protections against overload, short circuiting, and overheating, ensuring the safety of both the charger and connected devices.
- Efficiency and Fast Charging Technology: Incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, along with Programmable Power Supply (PPS) compliance to maximize charging efficiency and minimize heat generation.
| Performance | |
|---|---|
| Number of outputs | 2 |
| USB Type-A ports quantity | 1 |
| Fast charging technology | Quick Charge 3.0, Power Delivery 3.0, Programmable Power Supply (PPS) |
| USB Type-C ports quantity | 1 |
| Programmable power supply (PPS) (YES/NO) | Yes |
| Housing Material | Polycarbonate (PC) |
| Number of simultaneously connected devices (max) | 2 |

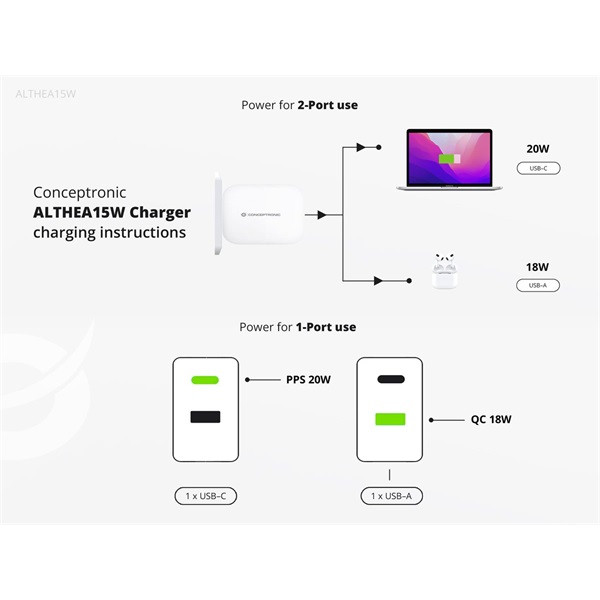

| Port 1 Power Output | USB-C output: DC 5.0V/3.0A, 9.0V/2.22A, 12.0V/1.67A (PD); 3.3-5.9V/3A, 3.3-11V/1.8A (PPS) |
| Port 2 Power Output | USB-A output: DC 5.0V/3.0A, 9.0V/2.0A, 12.0V/1.5A (QC 3.0) |
| Packaging content | |
| Power Plug Type | EU |
| Packaging data | |
| Package Depth | 172 millimeter |
| Package Height | 37 millimeter |
| Package Width | 53.5 millimeter |
| Package Weight | 15 gram |
| Logistics data | |
| Harmonized System (HS) code | 850440 |
| Sustainability | |
| Sustainability compliance | No |
| Others | |
| Approval and Compliance | CE, ERP, RoHS, REACH |
| Package Contents | Quick installation guide |
| Ports & interfaces | |
| USB Power Delivery revision | 3.0 |
| Operational conditions | |
| Operating temperature (T-T) Max | 40 celsius |
| Operating temperature (T-T) Min | 0 celsius |
| Storage relative humidity (H-H) Max | 90% |
| Storage relative humidity (H-H) Min | 5% |
| Operating relative humidity (H-H) Max | 95% |
| Operating relative humidity (H-H) Min | 5% |
| Storage temperature (T-T) Max | 80 celsius |
| Storage temperature (T-T) Min | -20 celsius |
| General | |
| Color | White |
| EAN | 4015867236468 |
| Model Number | ALTHEA15W |
| Power | |
| Maximum AC Input | 240 volt |
| Minimum AC Input | 100 volt |
| Input current | 0.5 ampere |
| Maximum power | 20 watt |
| Icecat_Power protection features | Over current, Over power, Short circuit |
| Weight & dimensions | |

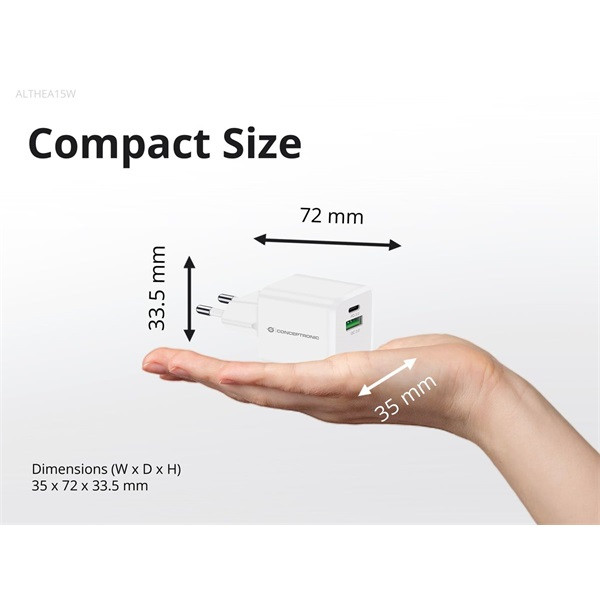

| Product Height | 33.5 millimeter |
| Product Width | 35 millimeter |
| Product Depth | 72 millimeter |
| Product Weight | 50.2 gram |
This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 20W of total power, ensuring faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing simultaneous charging of multiple devices with varying power needs. The charger supports a wide range of output options from 3.3V to 12.0V, making it compatible with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies, along with Programmable Power Supply (PPS) compliance, to ensure rapid charging while optimizing efficiency and minimizing heat generation.
