Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Net Weight | 1238 g |

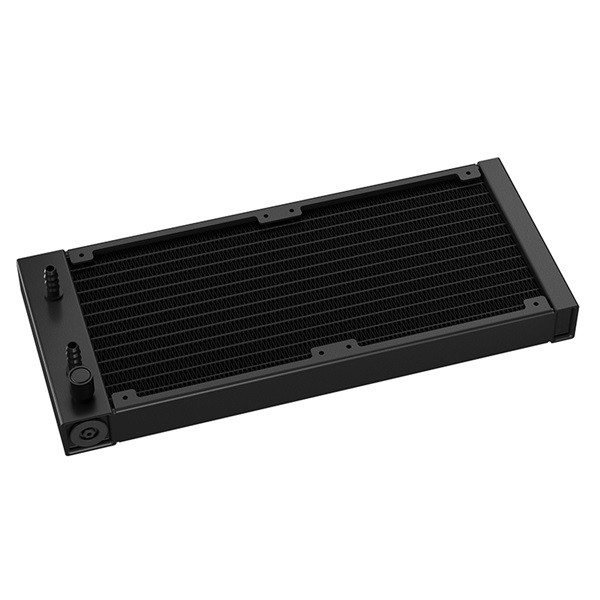

| Radiator Dimensions | 282×120×27 mm(L×W×H) |
| Radiator Material | Aluminum |
| Tube length | 410 mm(L×W×H) |

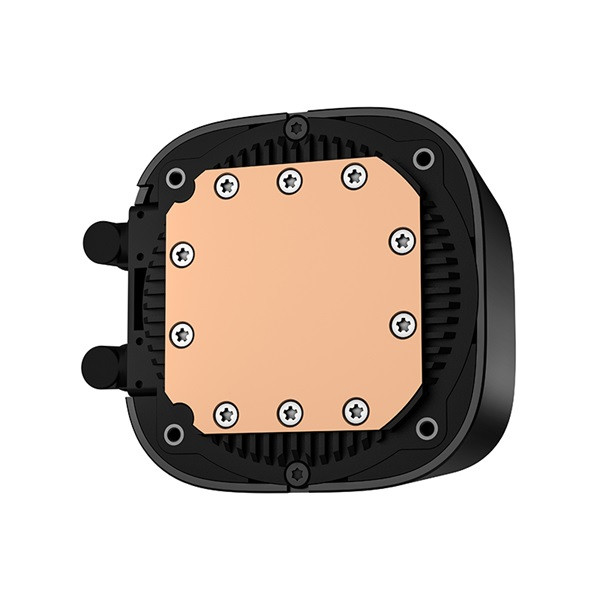

| Pump Dimensions | 91×80×52 mm(L×W×H) |
| Pump Speed | 2400 RPM±10% |
| Pump Noise | 17.8 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.2 A |
| Pump Power Consumption | 2.4 W |

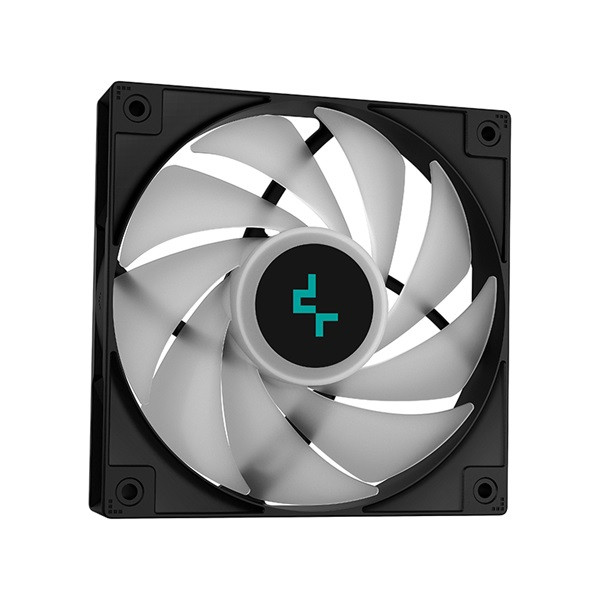

| Fan Dimensions | 120×120×25 mm(L×W×H) |
| Fan Speed | 500~2250RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.25 W(PUMP)/ 2.1 W(FAN×2) |
| EAN | 6933412728047 |
| P/N | R-LE520-BKAMMN-G-1 |
