| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | 230V EU White |

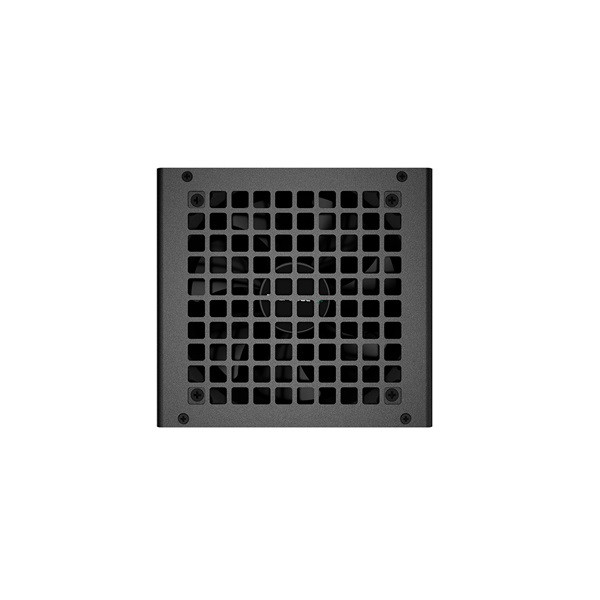

| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |

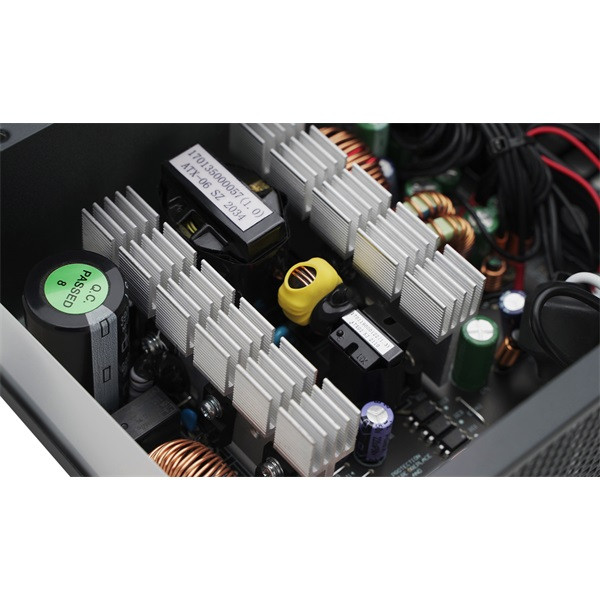

| Topology | Active PFC+Double tube forward |
| Capacitors | Taiwan bulk capacitor |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥12ms(75% Load) |
| Efficiency | ≥85% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/UVP |
| Operation Temperature | 0-40°C |
| Regulatory | CB/CCC/CE/UKCA/EAC/RCM/KC |
| Erp Regulation | ErP 2010 |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412711575 R-PF750D-HA0B-AU 6933412711582 R-PF750D-HA0B-AR 6933412711599 R-PF750D-HA0B-CN 6933412711605 R-PF750D-HA0B-EU 6933412711612 R-PF750D-HA0B-UK 6933412711629 R-PF750D-HA0B-WO 6933412711636 R-PF750D-HA0B-BP 6933412711728 R-PF750D-HA0B-US |
