Technical Spec
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |

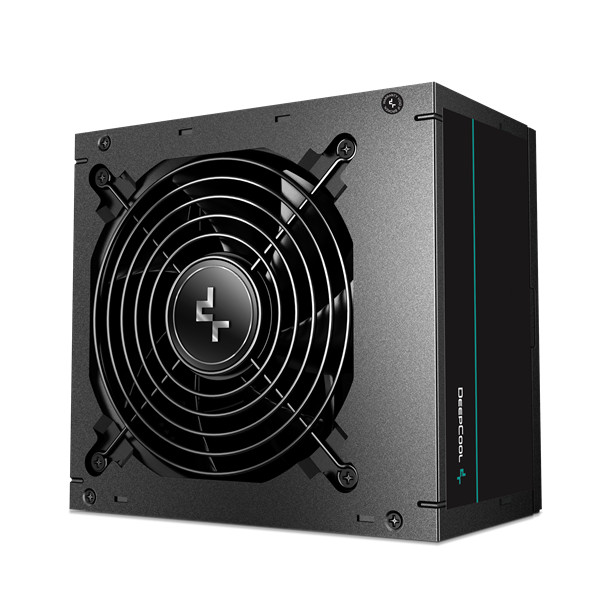

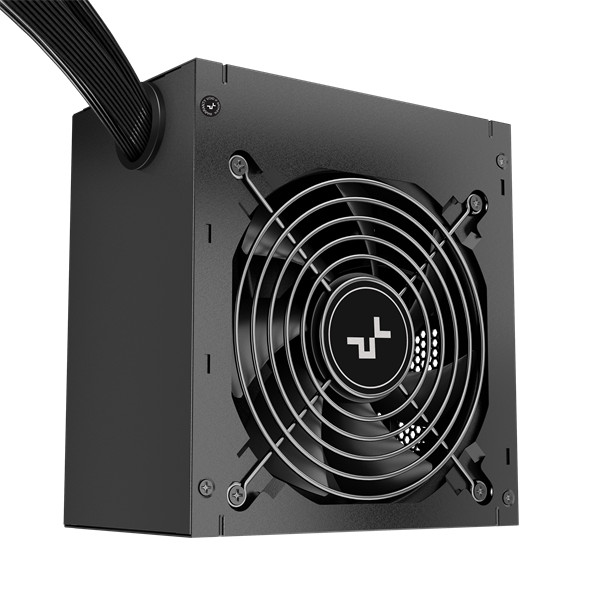

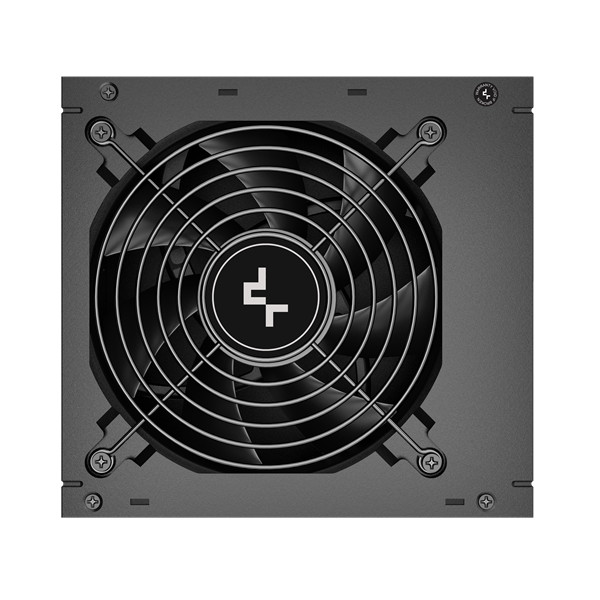

| Fan Size | 120mm |
| Fan Bearing | Hypro Bearing |

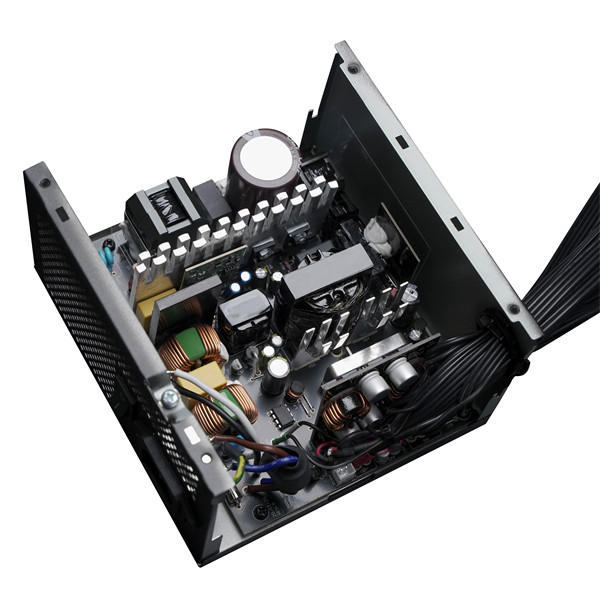

| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(75% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0-40°C |
| Regulatory | TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS |
| Erp Regulation | ErP(2014) |
| MTBF | 100,000 Hours |
| EAN P/N | 6933412709497 R-PM750D-FA0B-AU 6933412709503 R-PM750D-FA0B-CN 6933412709510 R-PM750D-FA0B-EU 6933412709527 R-PM750D-FA0B-JP 6933412709534 R-PM750D-FA0B-UK 6933412709541 R-PM750D-FA0B-US 6933412709558 R-PM750D-FA0B-WO 6933412711155 R-PM750D-FA0B-AR 6933412711162 R-PM750D-FA0B-BR 6933412711179 R-PM750D-FA0B-BU |
