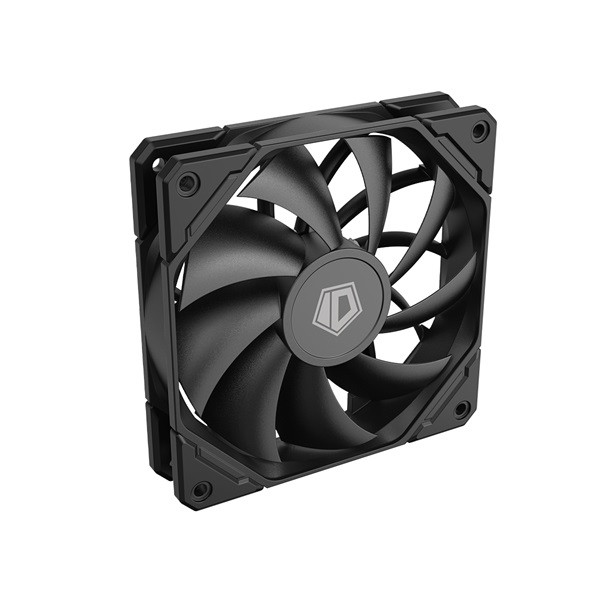

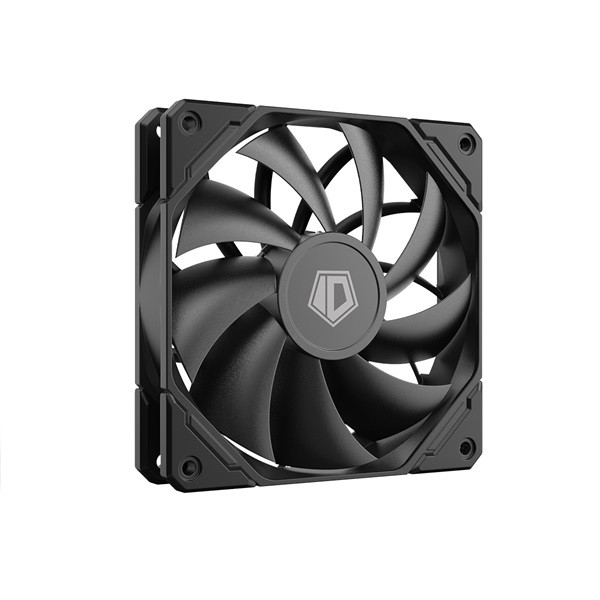

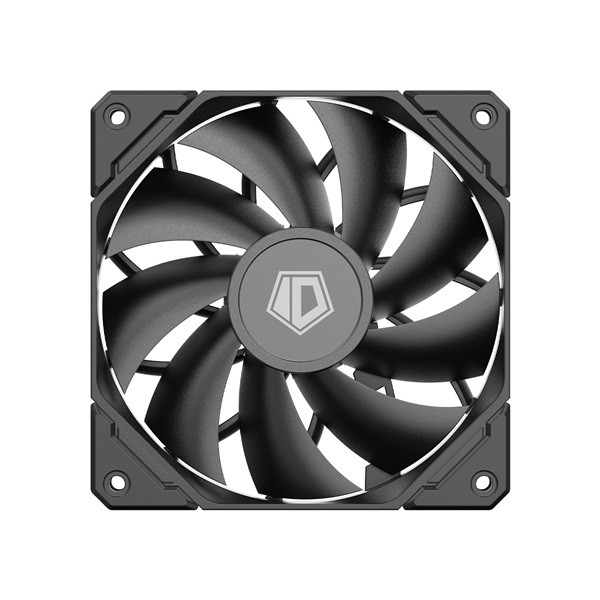

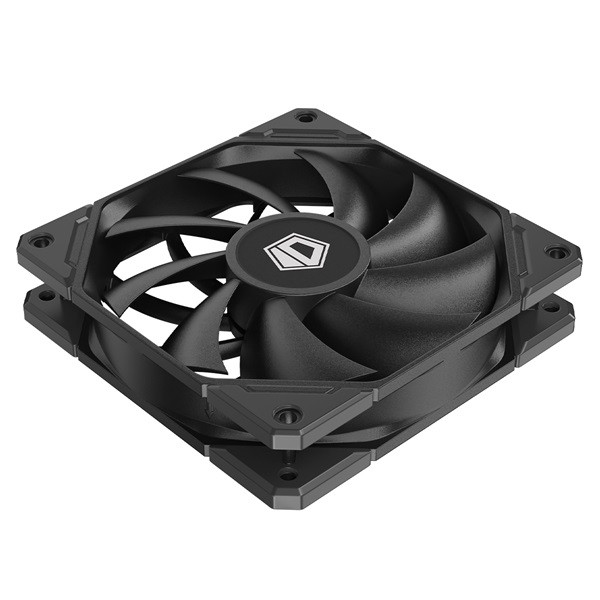

Fan Dimension |
120×120×25mm(PWM) |
|
Weight |
150g |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8~13.2VDC |
|
Starting Voltage |
7VDC |
|
Rated Current |
0.25±10%A |
|
Power Input |
3W |
|
Bearing Type |
Hydraulic Bearing |
|
Fan Speed |
500~1800±10%RPM |
|
Max. Air Pressure |
2.55mmH2O |
|
Max. Air Flow |
82.5CFM |
|
Noise |
35.2dB(A) Max. |
|

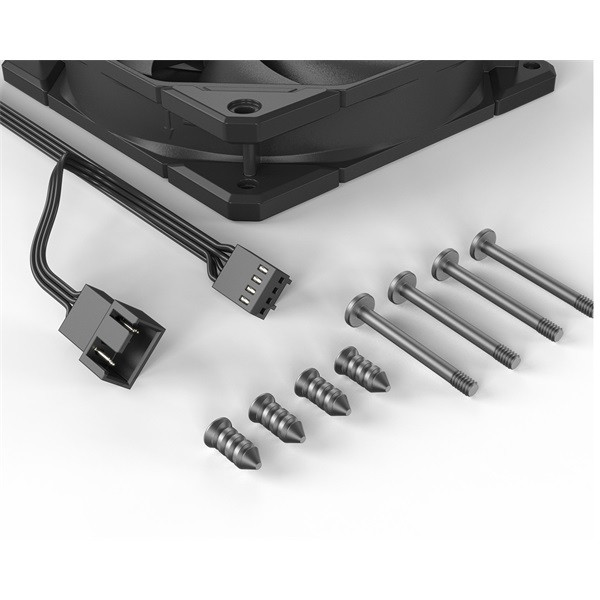

Connector |
4Pin PWM |
