Compatibility |
Intel LGA2066/2011/1700/1200/1150/1151/1155/1156 |
|
|
AMD AM5/AM4 |
||
|
TDP |
220W |
|
|
Overall Dimension |
128x108x150mm (L×W×H) |
|
|

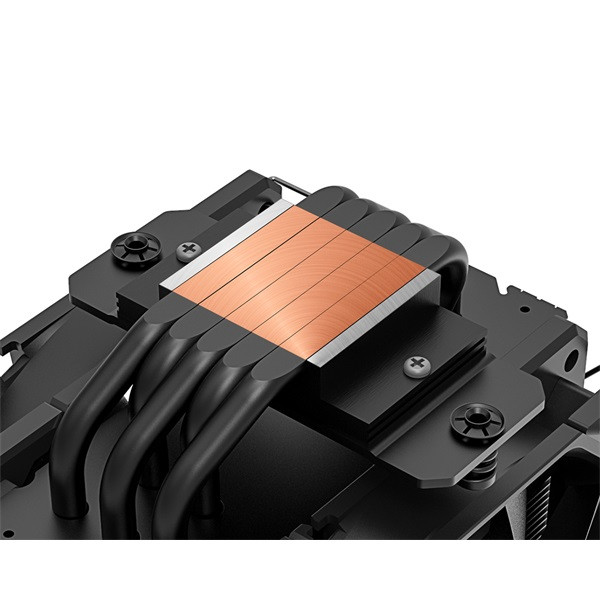

Heatsink Material |
5×?6mm Copper Heatpipe+Aluminum Fin |
|
|
Weight |
960g(heatsink+fan) |
|
|
|
Fan 1 |
Fan 2 |
|
Fan Dimension |
120×120×25mm |
120×120×25mm |
|
Fan Speed |
700-1800RPM(PWM) |
700-1800RPM(PWM) |
|
Max. Air Flow |
76.16CFM |
76.16CFM |
|
Max. Static Pressure |
2.16mmH2O |
2.16mmH2O |
|
Noise |
15.2-35.2dB(A) |
15.2-35.2dB(A) |
|
Rated Voltage |
12VDC |
12VDC |
|
Operating Voltage |
10.8~13.2VDC |
10.8~13.2VDC |
|
Started Voltage |
7VDC |
7VDC |
|
Rated Current |
0.2A |
0.2A |
|
Power Input |
2.4W |
2.4W |
|
Bearing Type |
Hydraulic Bearing |
Hydraulic Bearing |
|
Connector |
4Pin PWM |
4Pin PWM |
