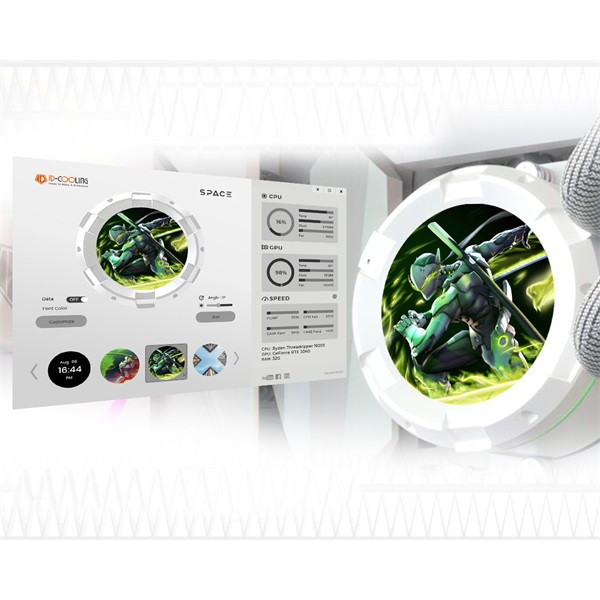

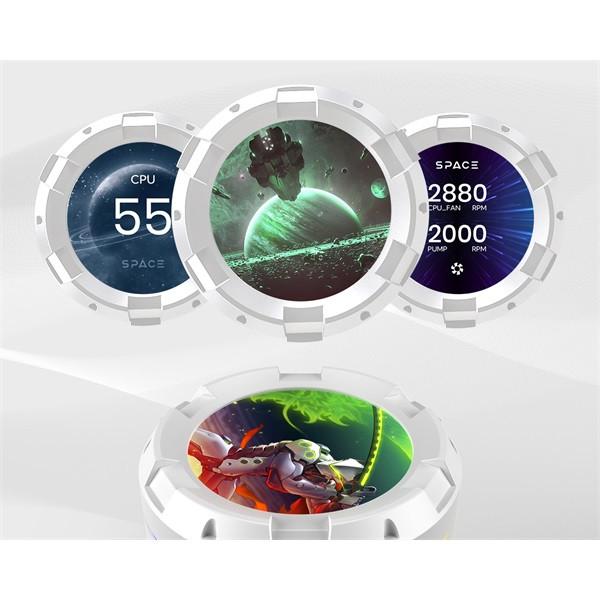

LCD SCREEN (Software download) |
|
|
Dimension |
2.1 inch |
|
Resolution |
480x480 |
|
Backlight |
600cd/m² |
|
Color |
24-bit, 16.7 million |
|
Compatibility |
Intel LGA2066/2011/1700/1200/1151/1150/1155/1156 |
|
AMD AM5/AM4 |
|
|
TDP |
300W |
|
Radiator Dimension |
276×120×27mm |
|

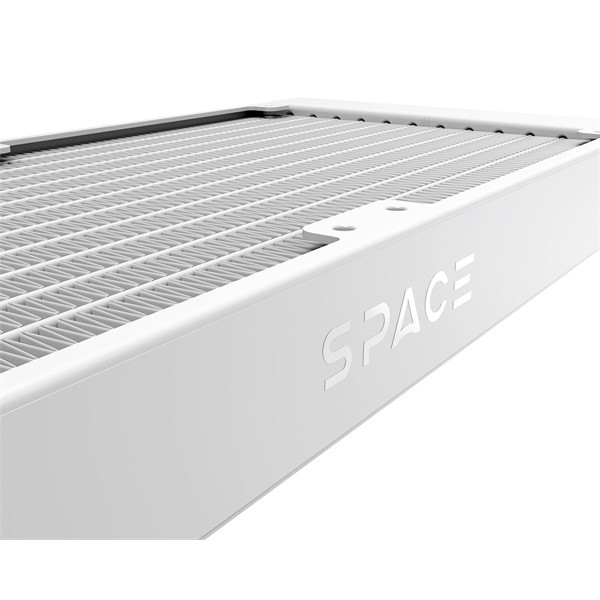

Radiator Material |
Aluminum |
|

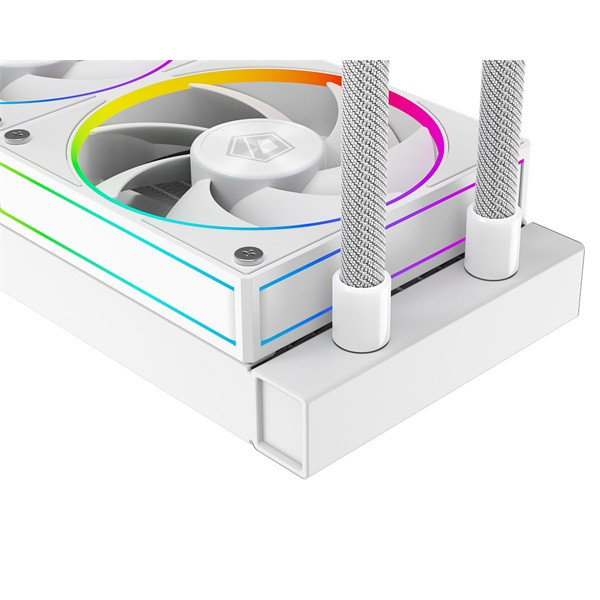

Tube Material |
Premium Sleeved Tubing |
|
Tube Length |
400mm |
|

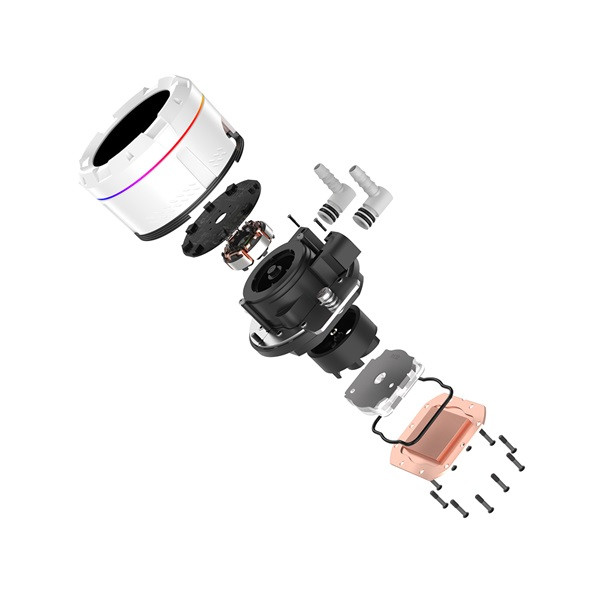

Waterblock Dimension |
76x76x58mm |
|
Cold Plate Material |
Copper |
|
Pump Current |
0.36A Max. |
|
Pump Speed |
0 - 2100RPM±10% / *0 - 2500RPM±10% |
|
Pump Bearing |
Ceramic Bearing |
|
Pump Life Expectancy |
50,000 Hrs |
|
Pump Noise Level |
25dB(A) |
|

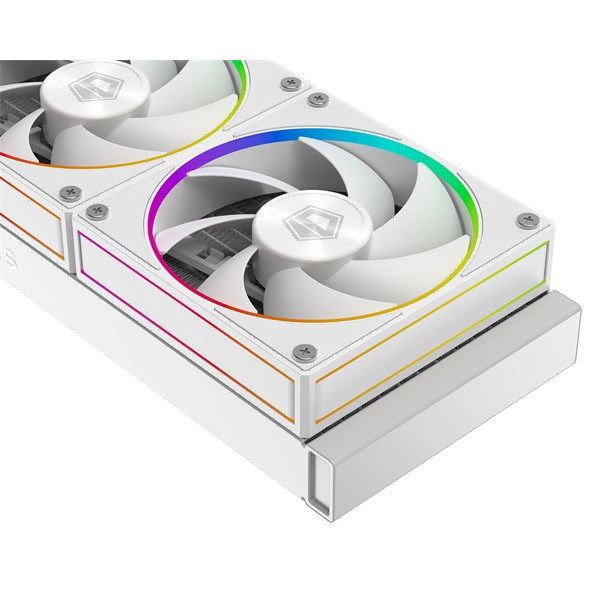

Fan Dimension |
120×120×27mm |
|
Included Fans |
2pcs |
|
Fan Speed |
500~2000±10%RPM |
|
Max. Air Flow |
78CFM |
|
Max. Static Pressure |
2.68mmH2O |
|
Noise |
29.9dB(A) Max. |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8~13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.25A |
|
Power Input |
3W |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Connector |
4Pin PWM |
