PN UPCMCOP110HBAAZ01B
EAN6422956011413
- Power
-
1000 VA / 1000 W
- Type
-
On-line
- Nominal Input Voltage
-
230 VAC
- Accepted Input Voltage Range
-
110-300 VAC ± 5% @ 50% load
160-300 VAC ± 5% @ 100% load
- Nominal Output Voltage
-
200*/208*/220/230/240 VAC
*Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC
- Frequency
-
40Hz ~ 70 Hz

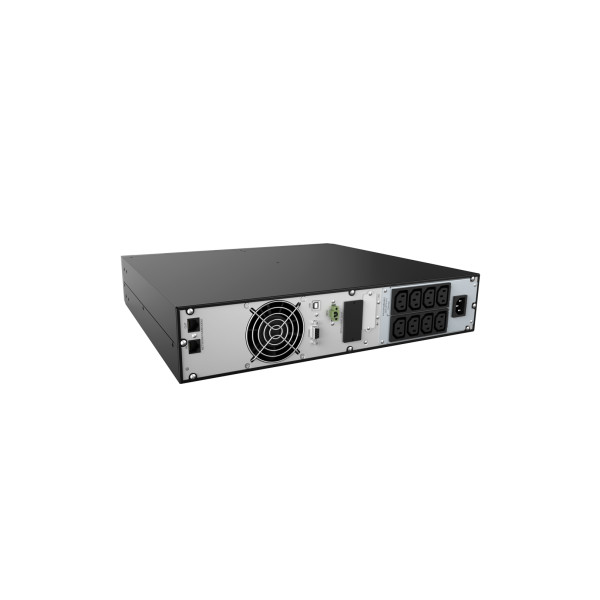

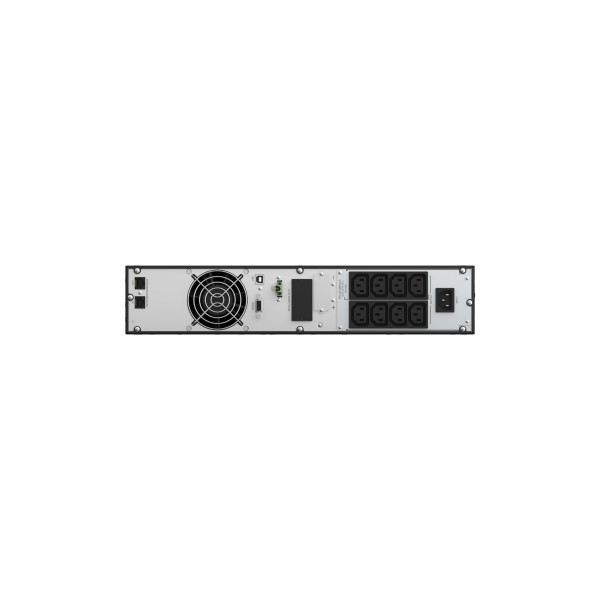

- Outlets
-
Input: 1 x IEC-320 C14
Output: 8 x IEC-320 C13
- Transfer Time to Battery / AC
-
Zero
- Efficiency
-
High efficiency up to 96%
- Typical Backup Time
-
25% Load - 31 min
50% Load - 13 min
75% Load - 8 min
100% Load - 4 min
- Communication Ports
-
RS232 / USB / Intelligent Port (not included in the package)
- Battery Type
-
Sealed and leak proof maintenance
- Battery Specification
-
3x CSB GP 1272
- Software
-
Monitor & Control over USB, LAN and Internet (SNMP card optional)
Online download (https://www. power-software-download.com/viewpower.html)
- Features
-
Pure sine wave output
True Double Conversion
Auto-Restart while AC is recovering
External battery pack (optional)
High efficiency up to 96%
User-friendly and easy-shift
LCD Output
Power factor 1.0
EPO function
Software management
Rack/Tower design
- LCD Display
-
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
- Environment
-
Humidity: 0-90 % (nin-condensing)
Temperature: 0-40 grades Celsius
Noise level: less than 50 dB
- Physical Dimensions
-
Dimensions:410 x 438 x 88 mm
Weight: 14.1 kg
