- Power
-
2000 VA / 1600 W
- Type
-
On-line
- Nominal Input Voltage
-
220-240 VAC
- Nominal Output Voltage
-
208/220/230/240 VAC – user selectable
- Frequency
-
50Hz / 60 Hz - user selectable

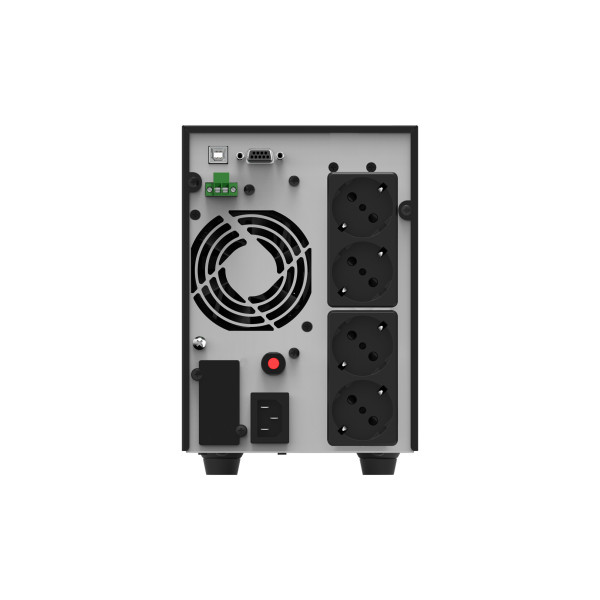

- Outlets
-
4 x Schuko Battery Backup & Surge Protection
- Transfer Time to Battery / AC
-
Typical 0 ms
Eco mode 4 ms
- Typical Backup Time
-
25% Load - 17 min
50% Load - 7 min
75% Load - 3 min
100% Load - 1 min
- Communication Ports
-
HID USB, RS232, EPO, SNMP
- Battery Type
-
Sealed and leak proof maintenance
- Battery Specification
-
4 x GP07122L
- Software
-
Monitor & Control over USB, LAN and Internet (SNMP card optional)
- Features
-
Online (double conversion)
Pure sine wave output
Selectable output voltage by user
Selectable output frequency by user
Wide Input Range (80V-300V)
Up to 96% Efficiency Rates
Software management
HID USB, RS2322, SNMP port communication
Generator Compatible
Auto-restart
Auto-charge
Low noise level

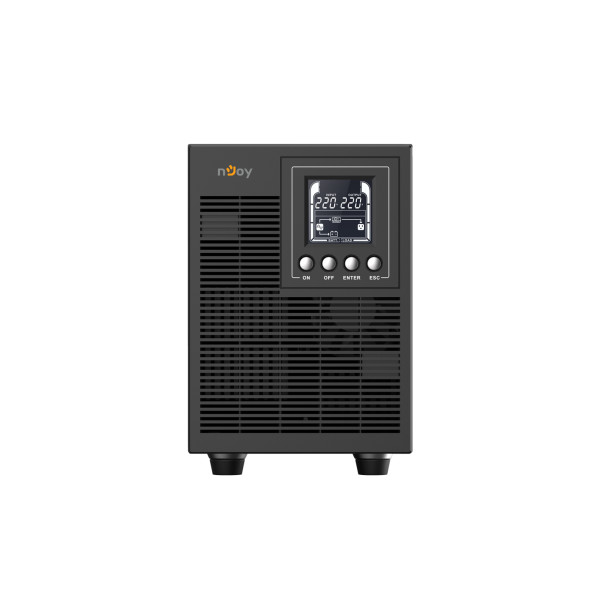

- LCD Display
-
UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
- Environment
-
Humidity: 0-90 % (non-condensing)
Temperature: 0-40 grades Celsius
Noise level: less than 40 dB
- Physical Dimensions
-
Dimensions: 390 x 151 x 225 mm
Weight: 16.6 kg
