HARDWARE FEATURES
Interface USB 2.0
Dimensions ( W x D x H ) 15*7.1*18.6mm
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 200Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz:
11a 6Mbps: -90dBm
11a 54Mbps: -73dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -70dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -67dBm
11ac VHT80 MCS0: -82dBm
11ac VHT80 MCS9: -56dBm
2.4GHz:
11b 1Mbps: -96dBm
11b 11Mbps: -88dBm
11g 6Mbps: -89dBm
11g 54Mbps: -74dBm
11n HT20 MCS0: -89dBm
11n HT20 MCS7: -72dBm
11n HT40 MCS0: -86dBm
11n HT40 MCS7: -66dBm
Transmit Power <20dbm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS

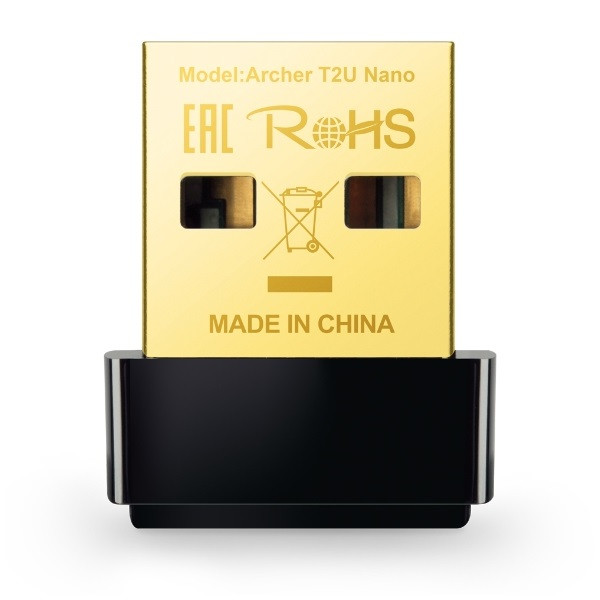

Package Contents AC600 Nano Wireless USB Adapter Archer T2U Nano
Resource CD
Quick Installation Guide
System Requirements Windows 10/8.1/8/7/XP (32/64bits),
Mac OS X 10.9-10.13
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
