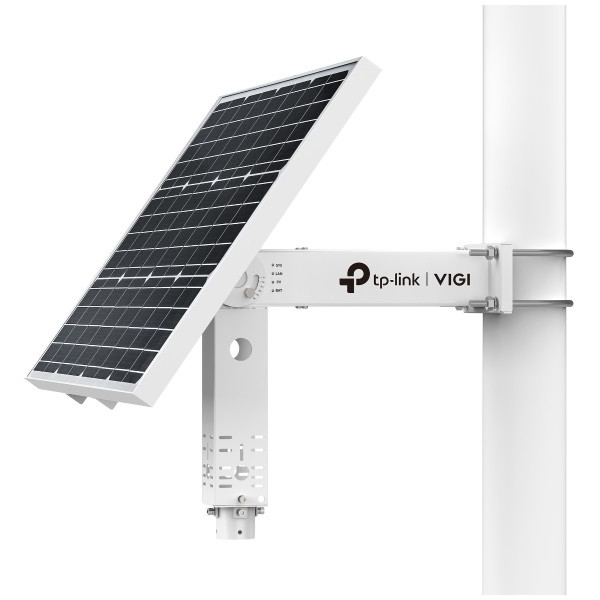

| Solar panel (photovoltaic panel) | |
| power | 60 W |
| Voltage | 18 V |
| Dimensions (L x W x H) | 690×516×30 mm (27.2×20.3×1.2 in) |
| Battery | |
| Type | Lithium |
| Intelligent auxiliary Heat | Yes |
| Battery Capacity | 20.8 ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 242×70×55 mm (9.5×2.8×2.2 in) |
| Charging Condition | • 0°C~45°C |
| • -30°C~45°C (With intelligent auxiliary heating) | |
| Discharging Condition | • -20°C~60°C |
| • -30°C~60°C (With intelligent auxiliary heating) | |
| angle adjustment (Manual) | |
| Range | 5°/15°/25°/35°/45°/55° |
| HaRDWaRE | |
| Interface | • 1× 10/100 Mbps RJ45 |
| • 1× photovoltaic panel Connector | |
| • 3× 5.5mm DC power plugs (#1, #2: 9V-12.6 VDC/2a, #3: 12 VDC/2a) | |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LaN Indicator, 1× pV Indicator, 1× BaT Indicator) |
| • Color: Blue | |
| Szoftver jellemzők | |
| Load Control | Yes |
| High and Low Temperature protection | Yes |
| Overdischarge protection | Yes |
| power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
