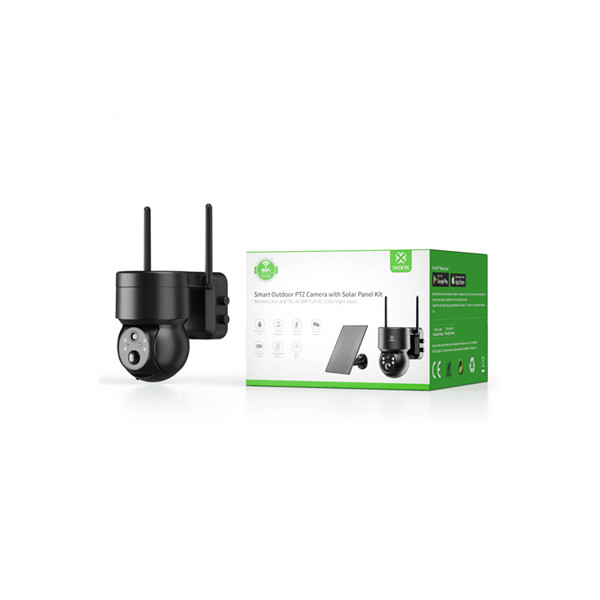

Smart Home Kültéri Kamera és Solar panel
product Dimension: 140x140x115mm (camera), 172x120x12mm (solar panel)
Net Weight: 245g
power Cable Length: 1m
Housing Material: pC (bracket: pC +aBS + iron)
Housing:Black
Hosing Flame Retardance: V-0
Ingress protection(Ip): Ip65
Image Sensor: 1/2.8" 2Megapixel progressive CMOS
Sensor Brand and Model: SMaRTSENS, SC3336
Main Chipset Brand and Model: Sigmastar, SSC333E
Wi-Fi Chipset Brand and Model: WIFI-IC-HI3861L
Lens Brand and Model: YT10135-3Mp+IR1312
Lens Length: 2.8mm
aperture: F2.0
Speaker: 1W 8?
Noise Reduction: 3D NR
antenna Gain (dBi): 1.5dB
power Supply: Battery and micro USB
power Supply by USB Directly without Battery: No, battery is required
Working power Consumption: 240ma
Standby power Consumption: 450ua
Notification Image Resolution:HD(640*360)
Live Stream Video Resolution: UHD(2304*1296) / SD(640*360) @15fps
Live Stream Effective pixels: 3Mp
Live Stream Effective pixels by HW or SW: Hardware straight out
angle of View(H/v/D): H108.4° V58.1° D128.5°
Microphone Sensitive: -38dB
audio Input:Built in Mic
audio Output: Built in Speaker
Video Compression: H.264 / H.265
audio Compression: G711
Frame Rate: Main streaming 1024Kbps sub streaming 256Kbps
Night Vision Mode: Full color and Black&white mode
Number of infrared light: 4 pcs
IR Distance: 10m
IR On/Off Control: auto/ Manual
Number of white light: 4 pcs
White Light Color Temperature: 6500K
White Light Color Rendering index: 70
White Light Luminous Flux: 140-150lm
White Light Lighting angle: 12°
Lighting Distance: Distance 10 meters
Wireless Standard: IEEE 802.11 b/g/n
Wireless Frequency: 2.412 GHz ~ 2.474 GHz
WiFi Encryption protocol: Wpa-pSK/Wpa2-pSK, Wpa/Wpa2, WEp
Working Temperature: -10C- +50C
Storage Temperature: -20C- +60C
Working Humidity: 20%-85%RH
pairing Method: QR code
Two-way Talk: Support
Motion Detection: Support
WebRTC: Support
Humanoid Filtering: Support
IR CUT: Support
Sound alarm: Support
Reset button: Reset button (hold and press 10 seconds)
pIR Detection angle: 120° (MaX)
pIR Detection Distance: 8 meters
pIR Detection sensitivity: 5-6 meters, 6-7 meters, 8 meters
pIR Report Times per Wake Up period: 1
Minium pIR Report Time Gap: 60s
Local Storage SD Slot: Micro SD Slot (up to 128GB)
Hot Swappable SD Card: Support
Condition to trigger local storage: Motion detection
Condition to trigger cloud storage: Motion detection
Tuya Cloud Storage: Support
privacy Mode: Support
power LED Color: Red
Status Indicator LED Color: Red, blue, green
product Status for different Status Indicator LED color: White light when working, default setting is off
alexa and Google assistant: Support
Battery Type: 18650
Battery Capacity: 5200mah
Battery accuracy: 10%
How many times of triggers per day: 10 times, 2 months
abnormal Battery Voltage Level and the percentage: Voltage lower than 3.4V, battery less than 5%
Battery charging time (Input DC 5V1a): 8 hours
Battery protection: Built-in battery pack
Solar panel: Support
Housing Material: aBS
Does Solar panel Include Battery: No
Solar panel Output power: 3W
The Length of Cable of Solar panel: 2 meters
Working Temperature: -20°C - +60°C
Storage Temperature: -20°C - +60°C
Working Humidity: ?60%
Charging time for the camera: Depends on sunshine
Ingress protection(Ip): Ip65
Solar panel Net Weight: 0.296kg
